the 'Design Process' Concept
Concept Description
Concept Images
Preliminary work
Starting in the programming phase of the 9th floor renovation project, sketches and prototypicals were created to follow the projects’ program elements to get a sense of the total square footage needed for the renovation to then create a programming spreadsheet.

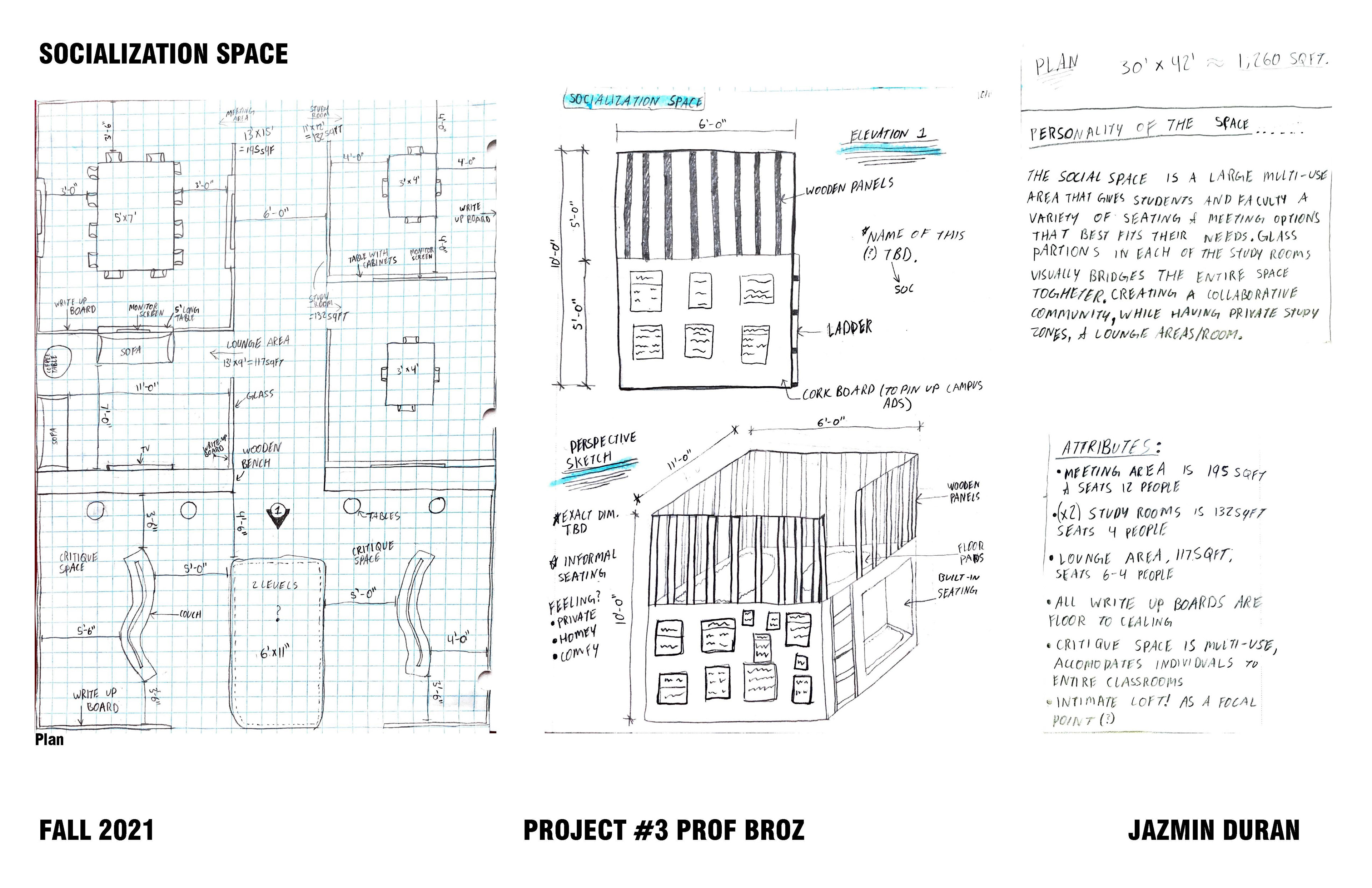

Social Space

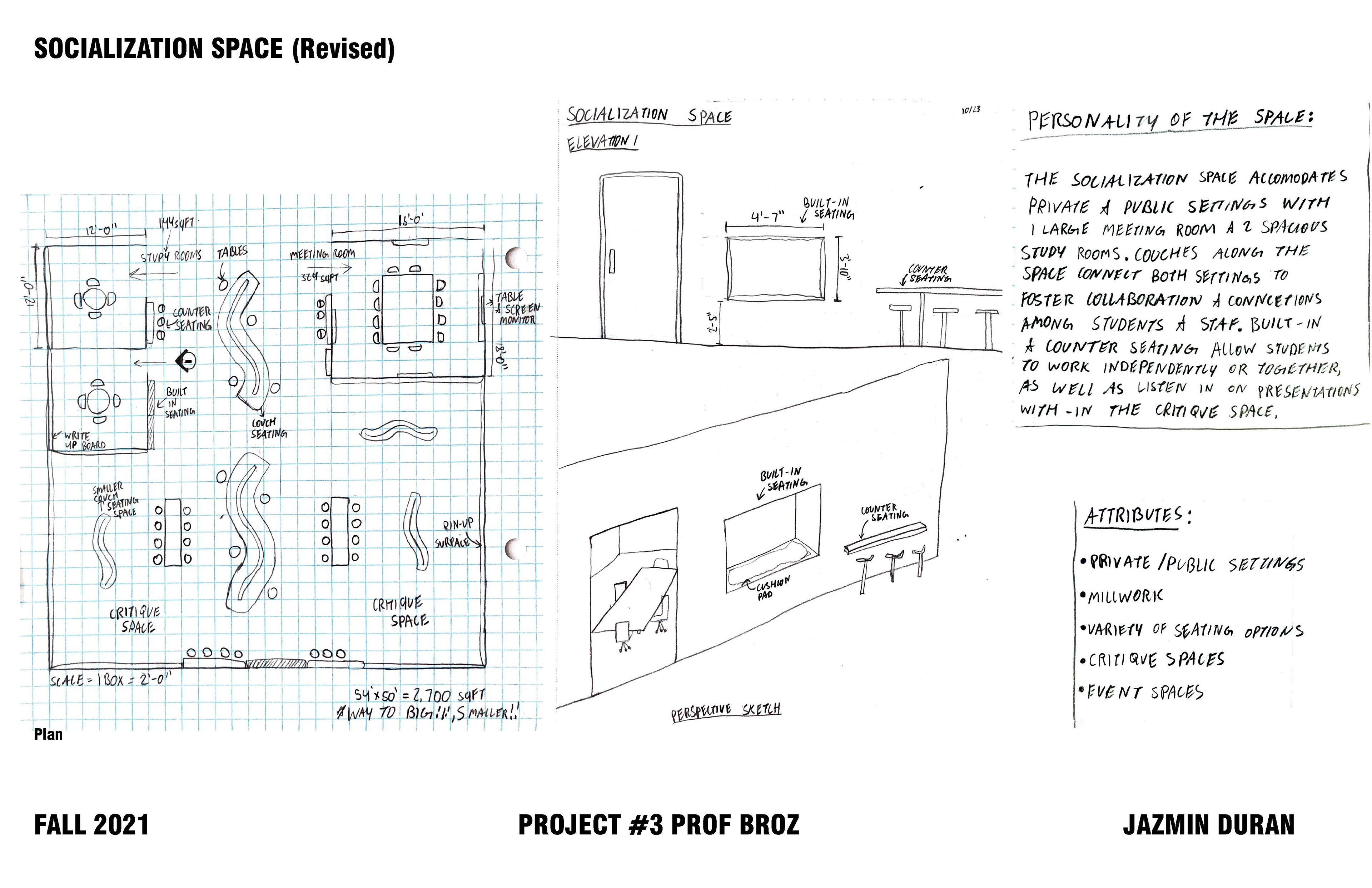

Social Space (Revised)
Full-Time Faculty

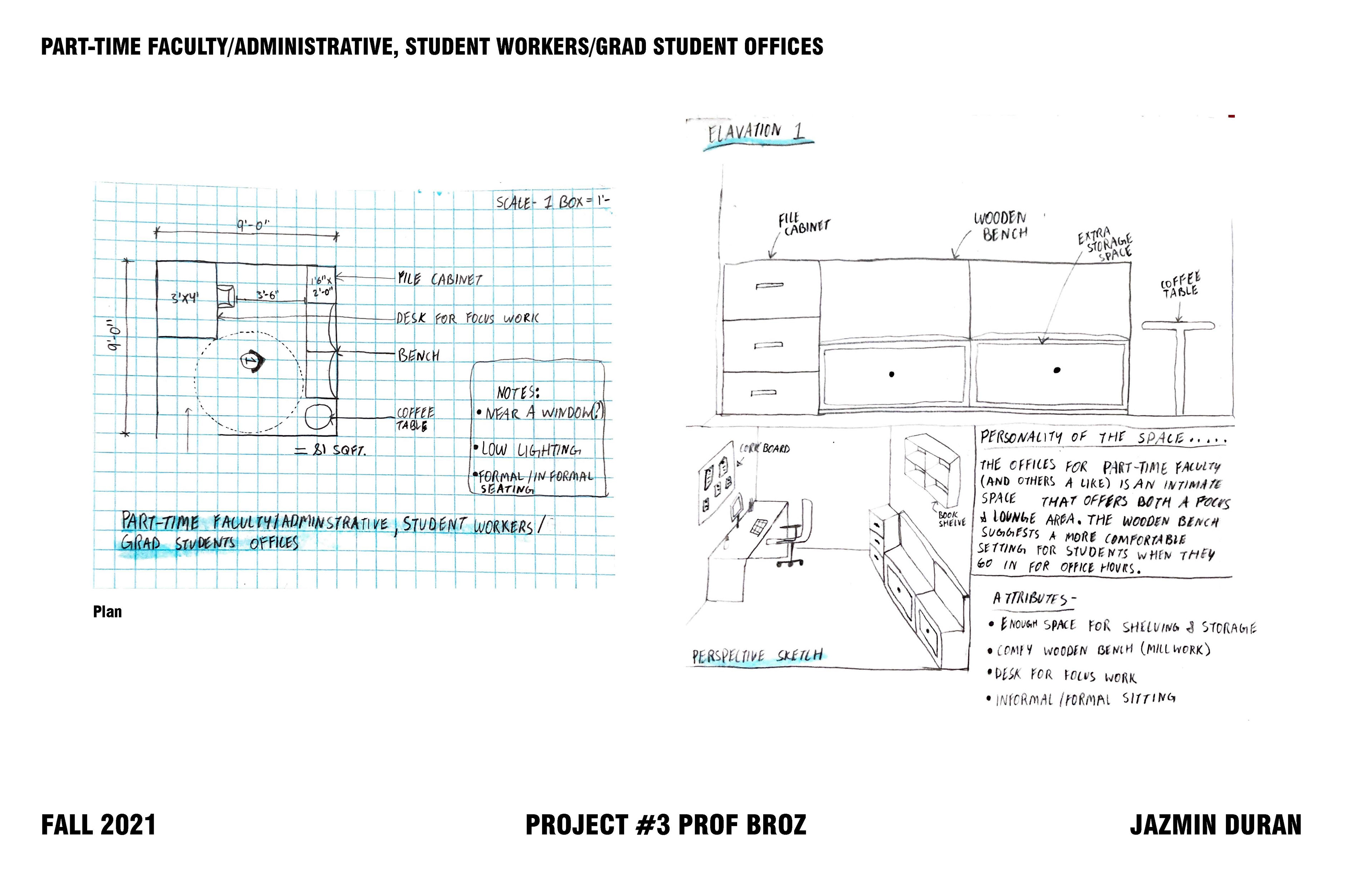

Part-Time & Other Faculty

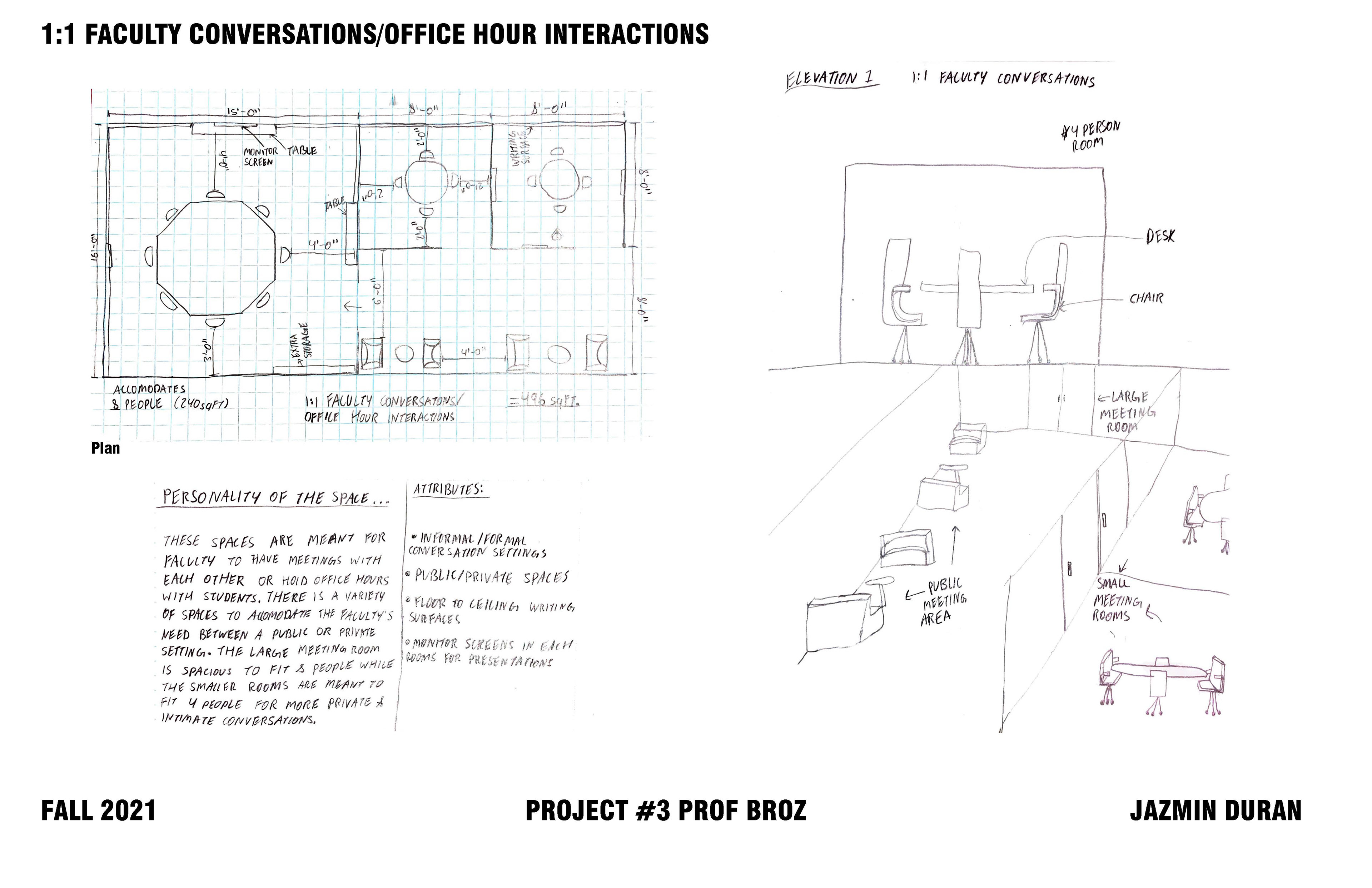

1:1 Interactions

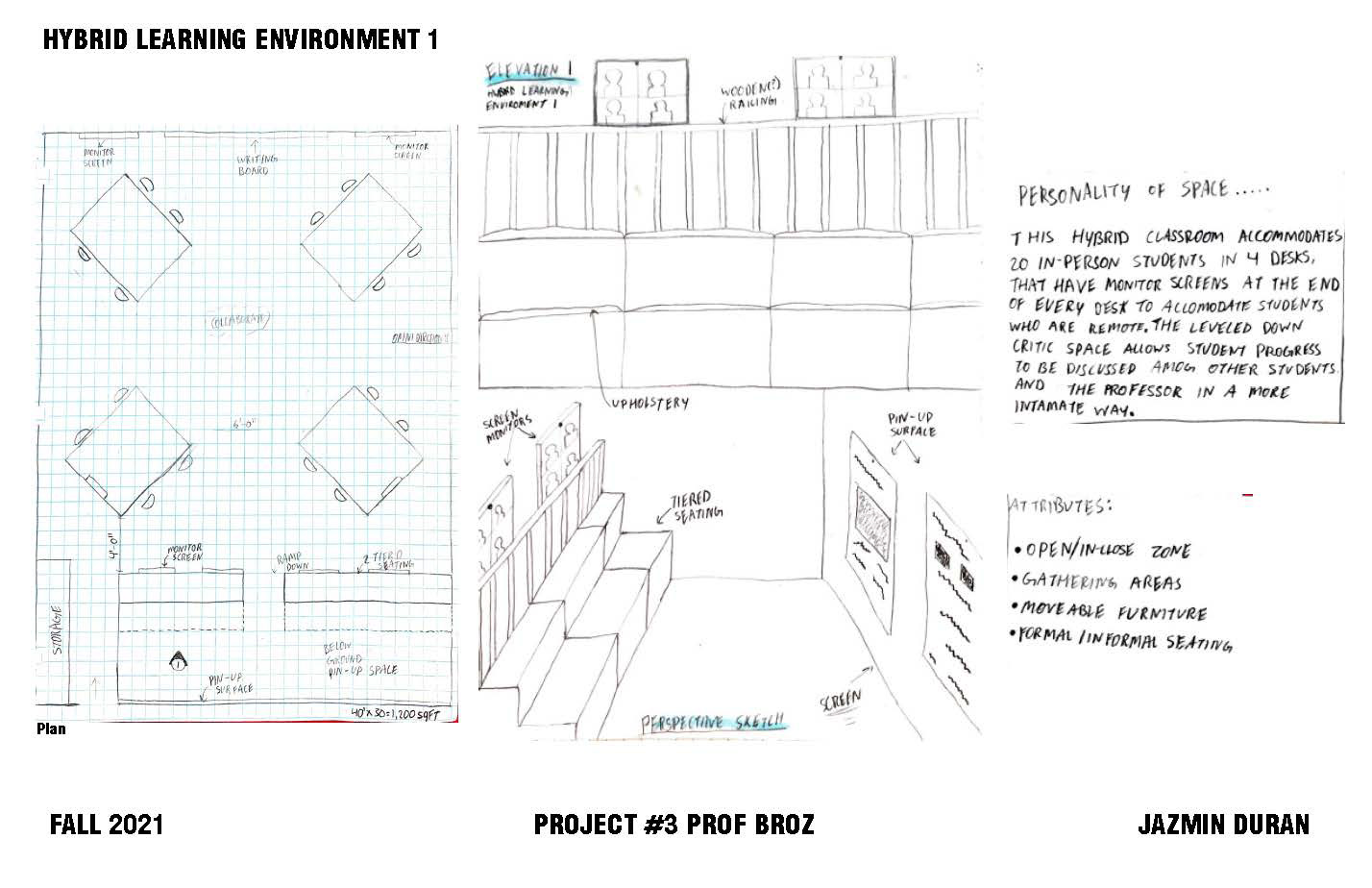

Hybrid Learning Environment 1

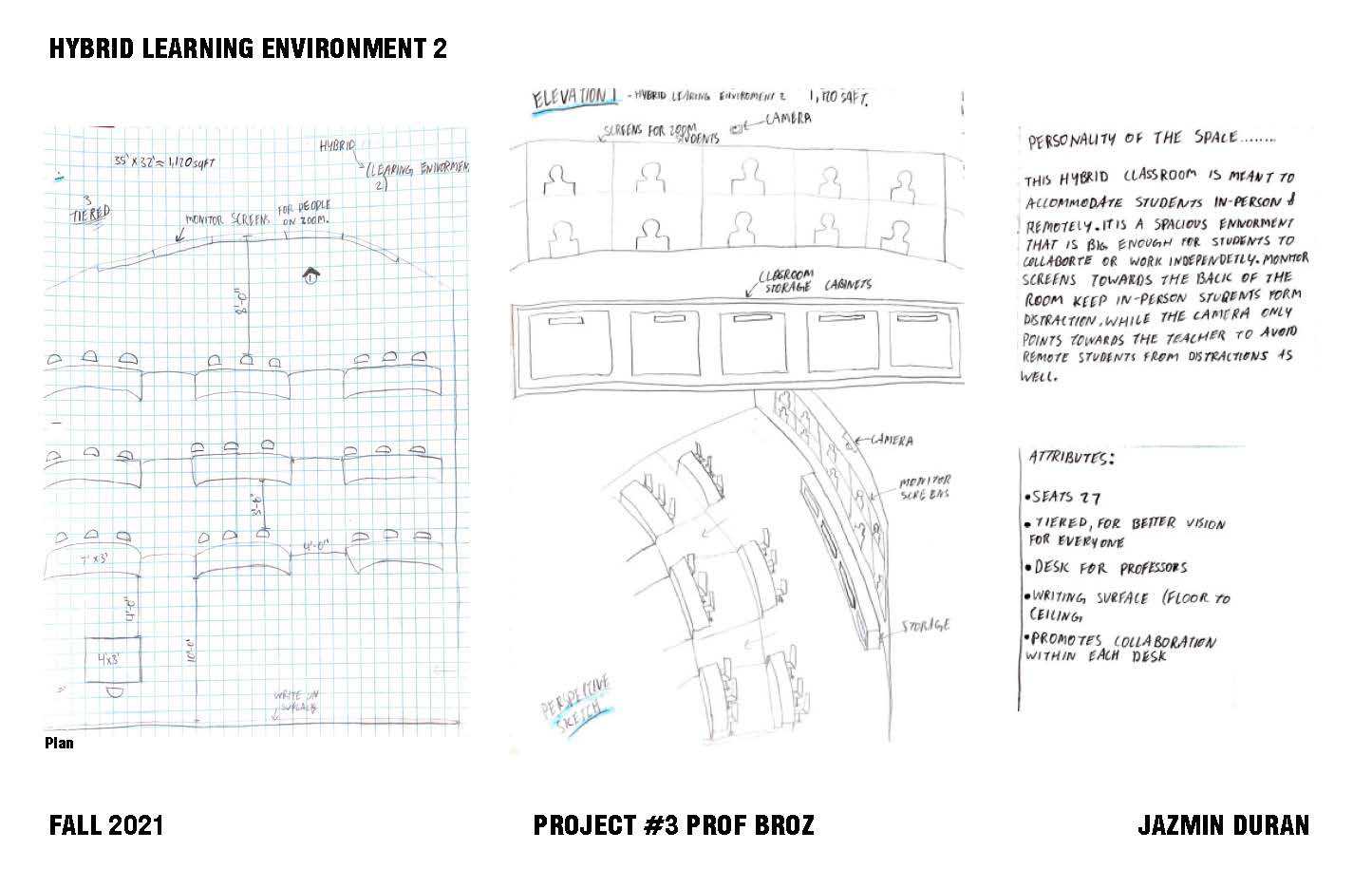

Hybrid Learning Environment 2

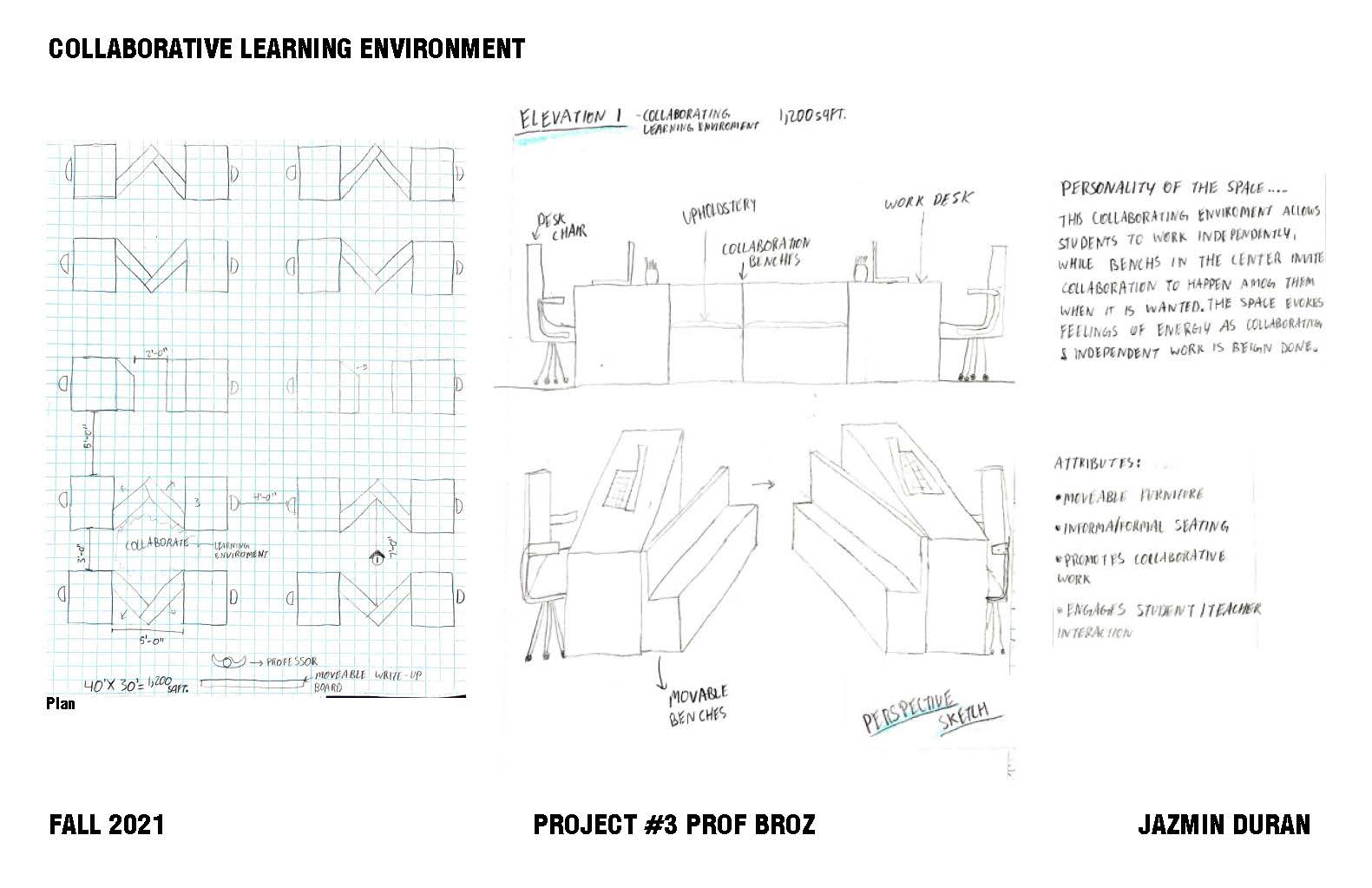

Collaborative Learning Environment

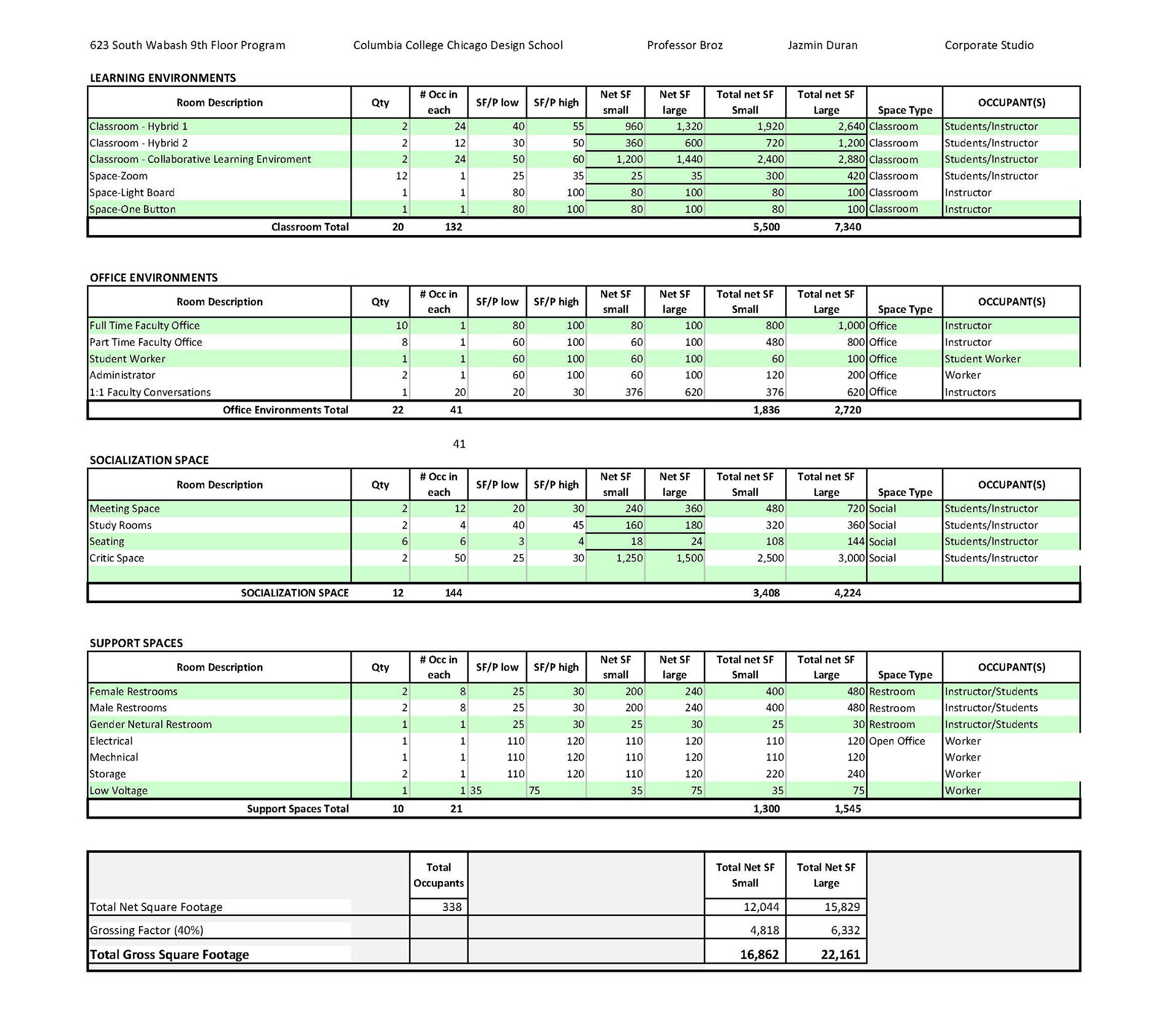

Program Spreadsheet
The schematic and design development phase of the project included refinement of bubble diagrams and test fits that follow the logic of the programming sheet to reach the best spatial solution for the user’s needs.

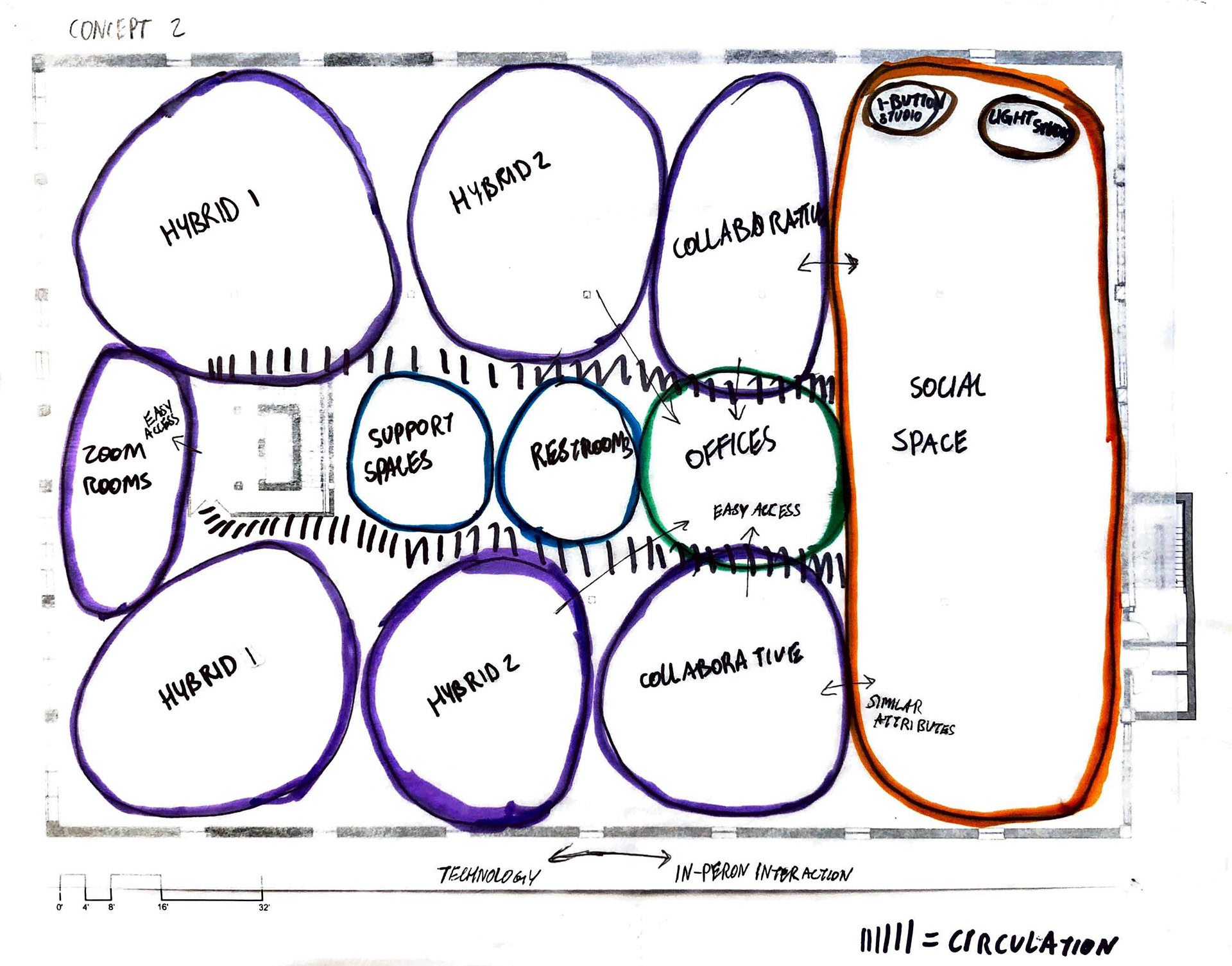

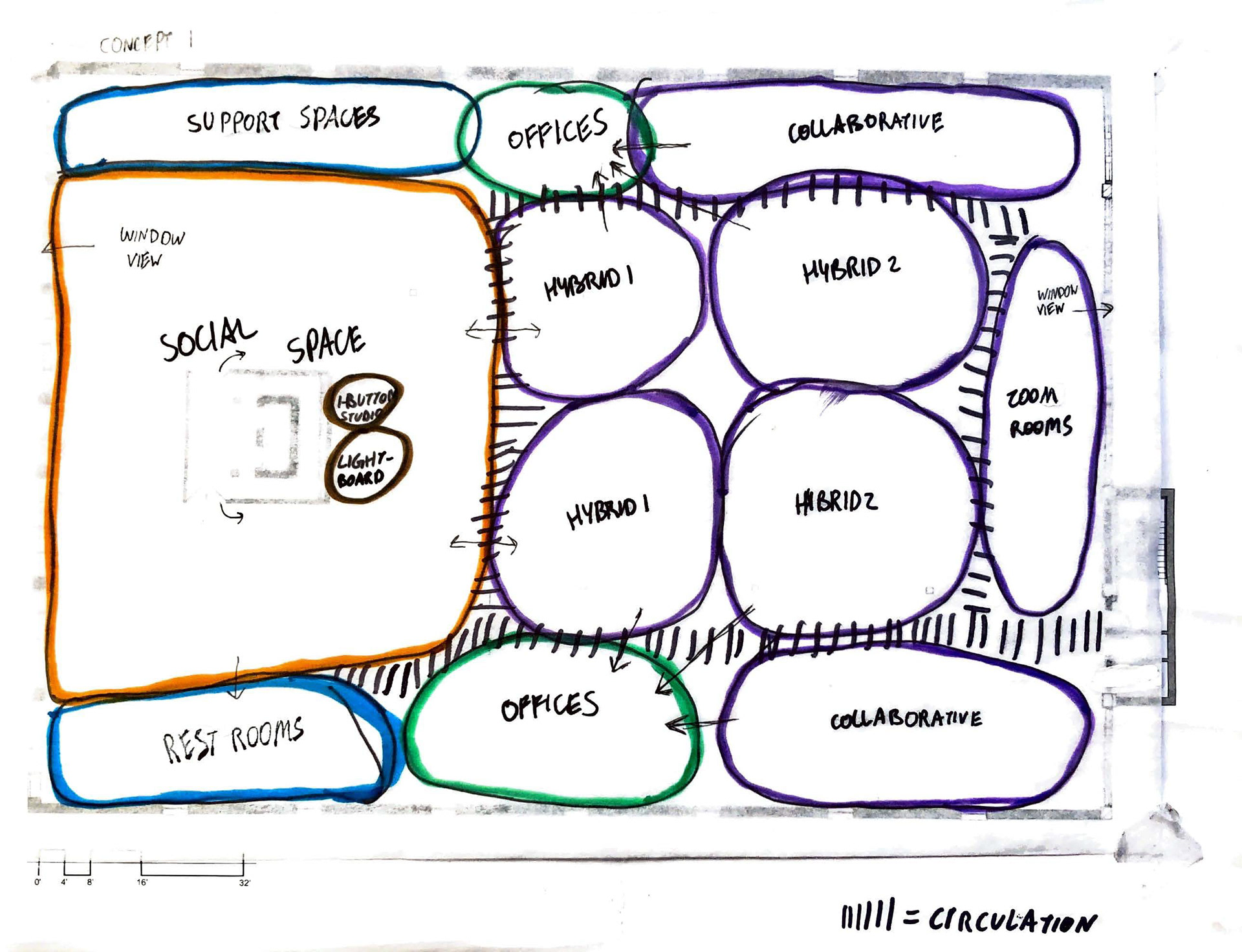

Bubble Diagram 1
Bubble Diagram 2

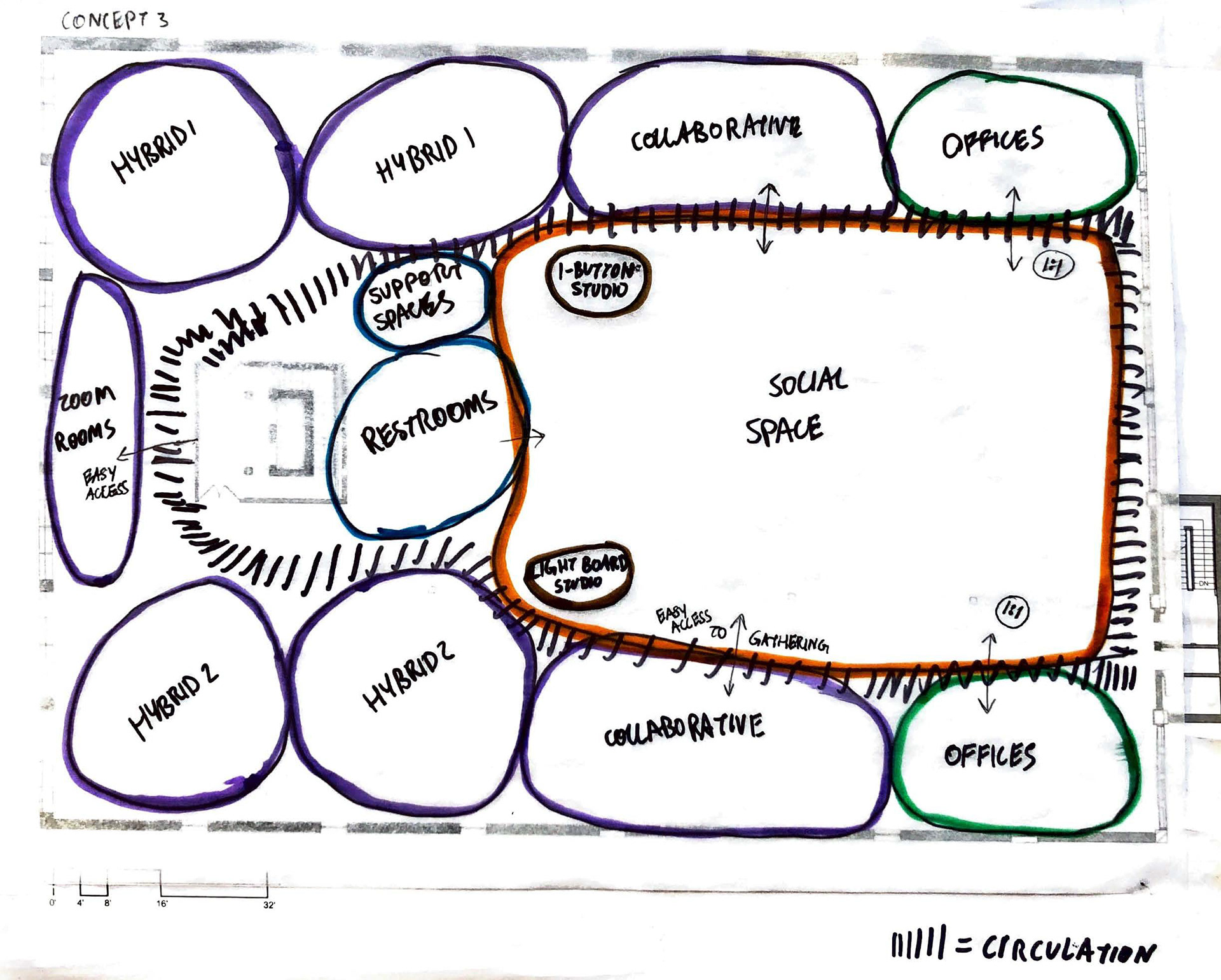

Bubble Diagram 3

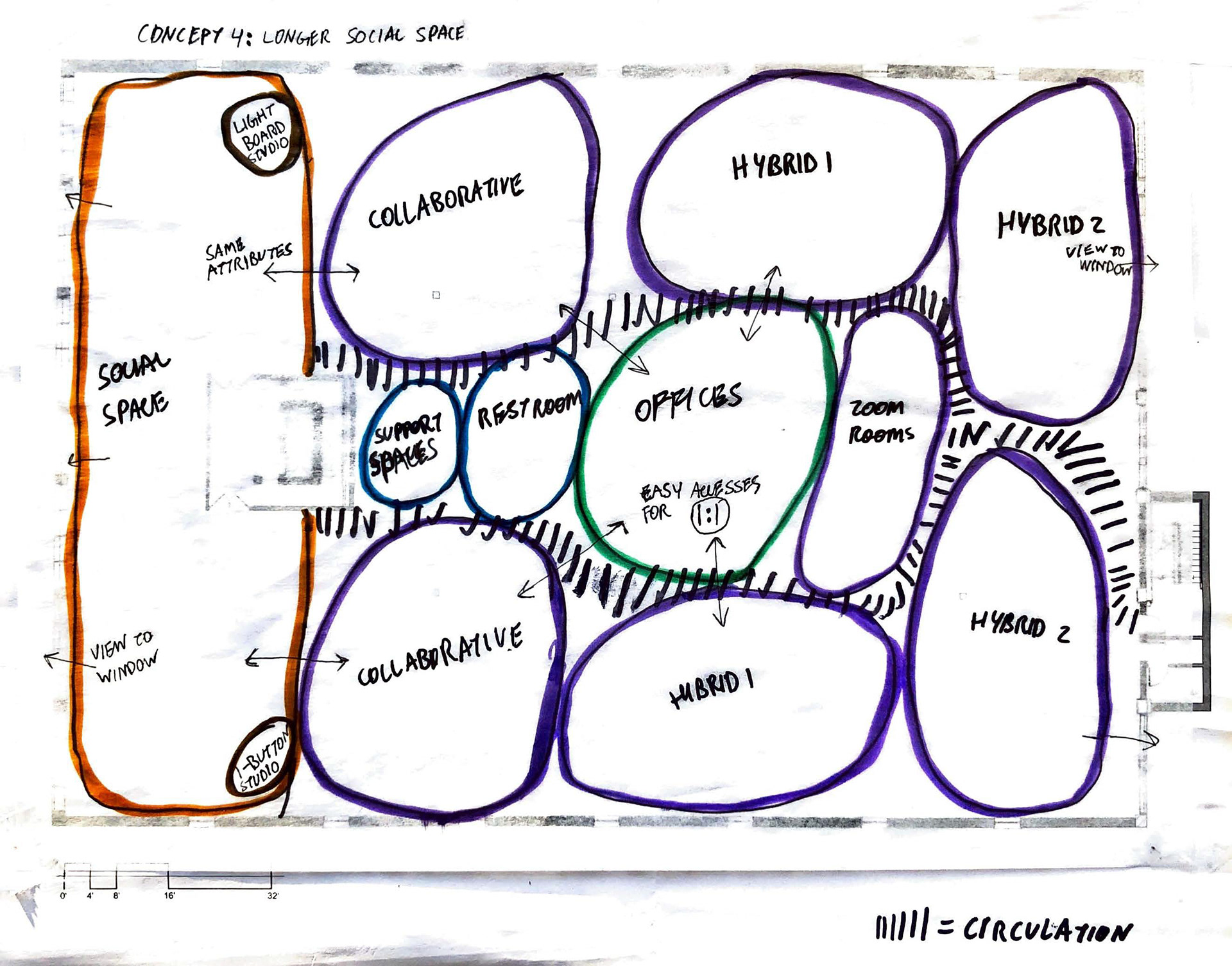

Bubble Diagram 4

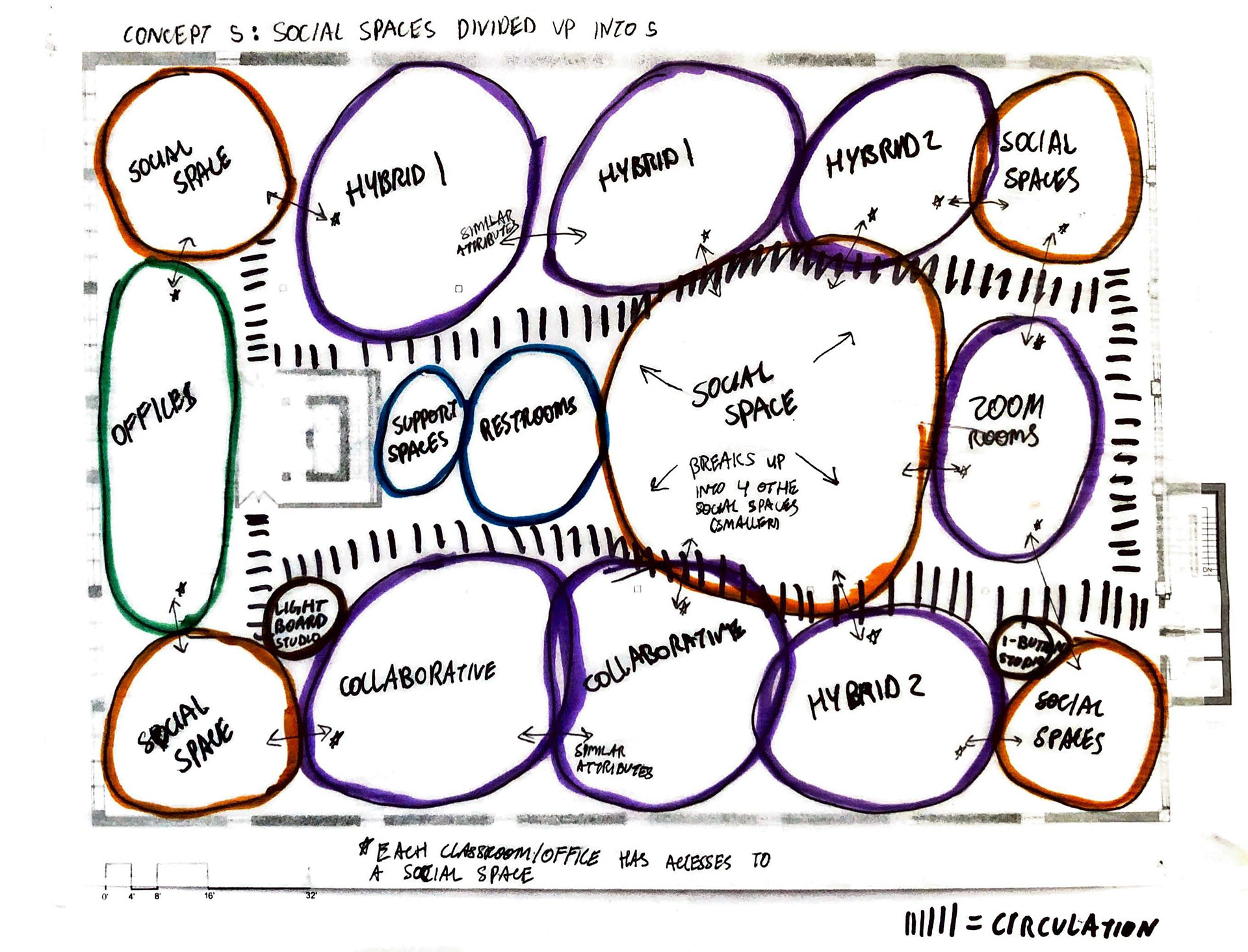

Bubble Diagram 5

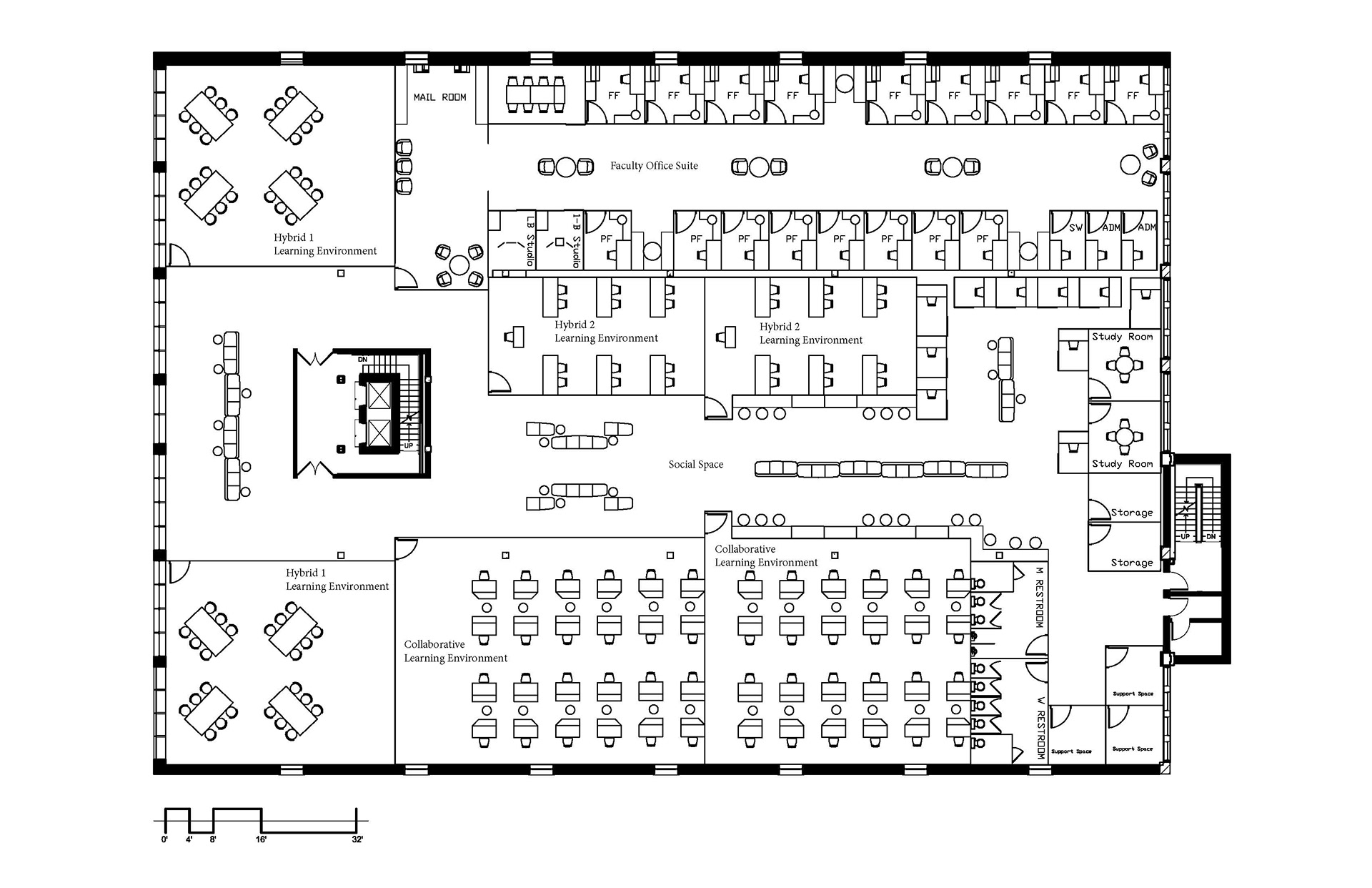

Test Fit Option 1
Test Fit Option 2
Test Fit Option 3
Plans
Once the program elements and floor plan where finalized, the ‘design process’ concept was applied throughout all the plans of the 9th floor renovation project.

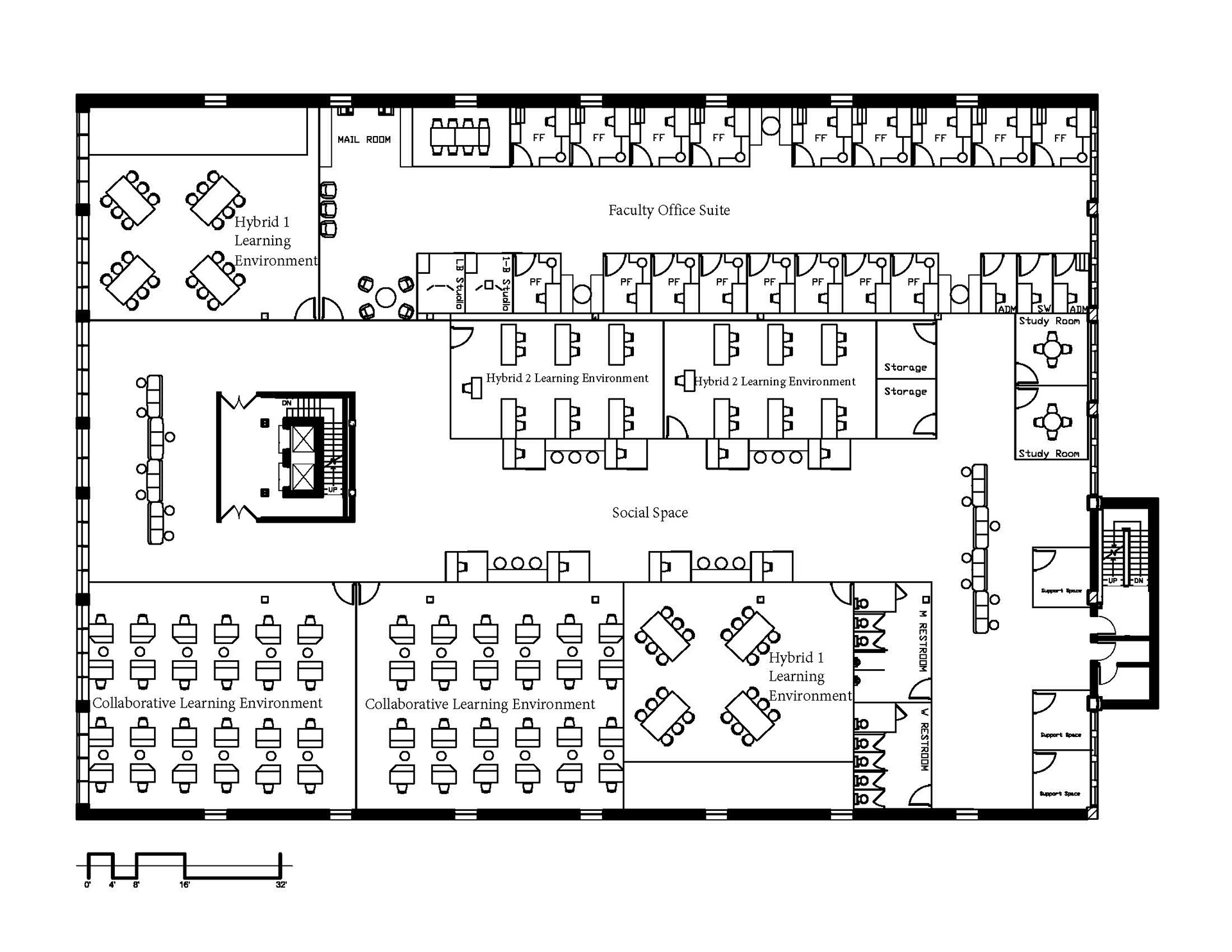

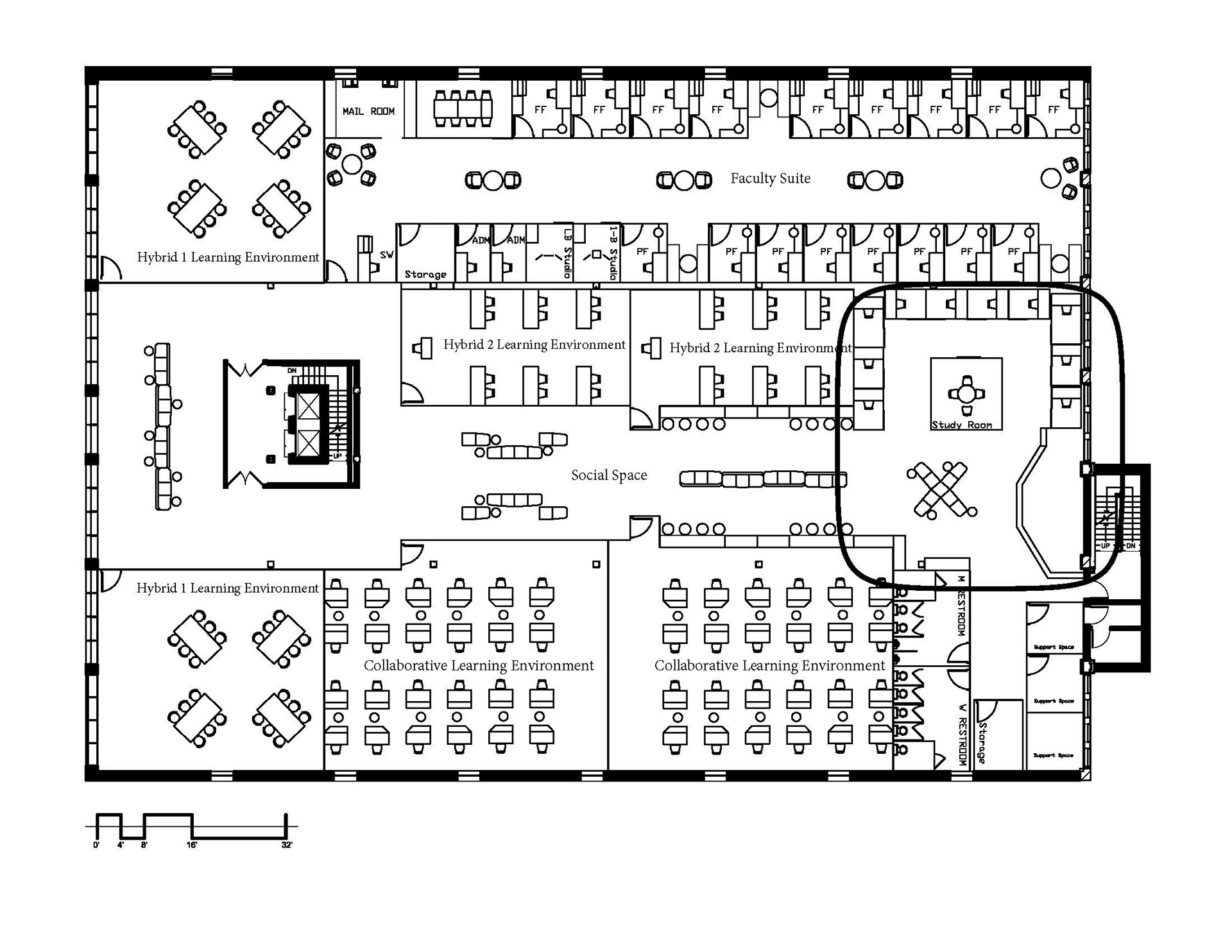

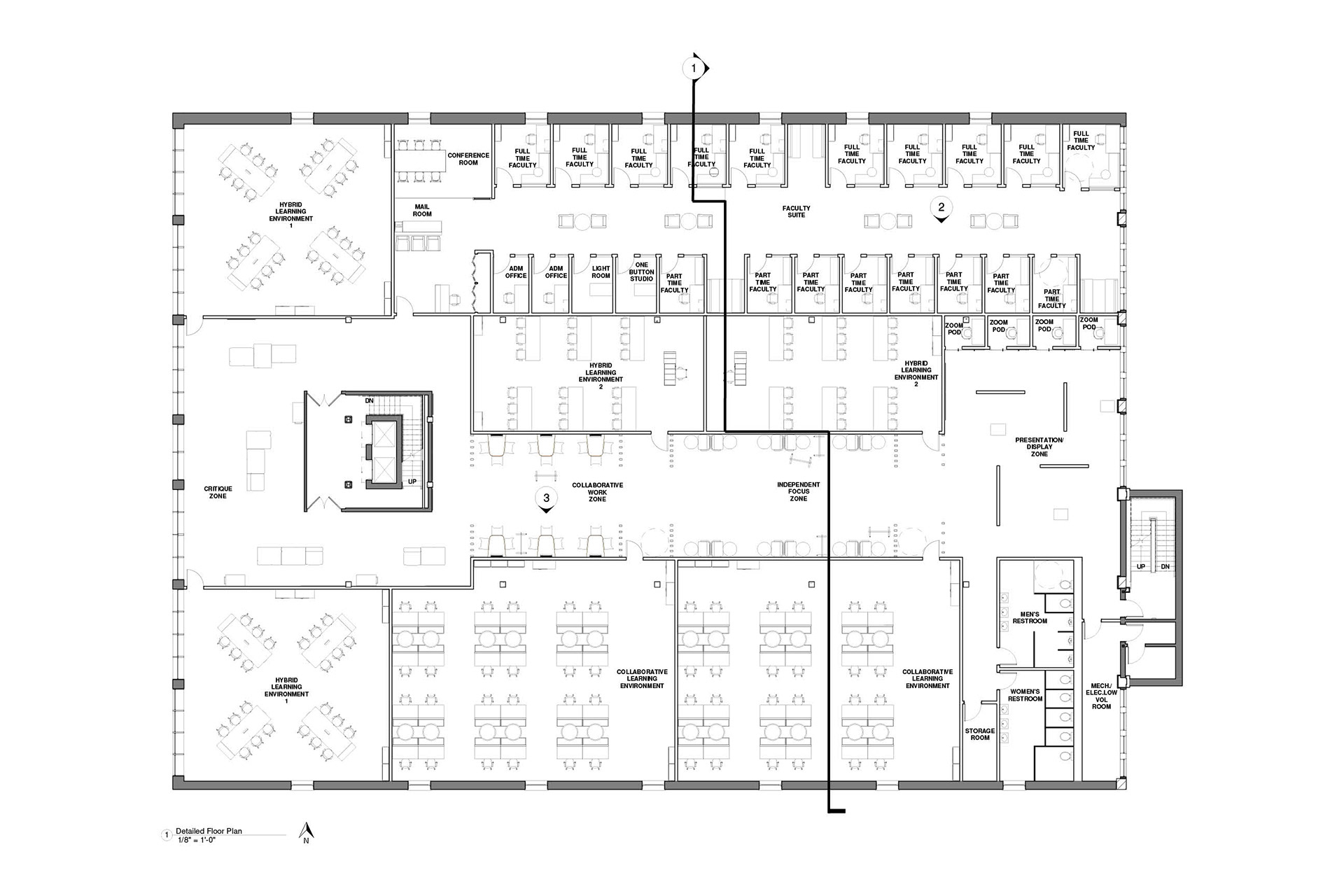

Floor Plan

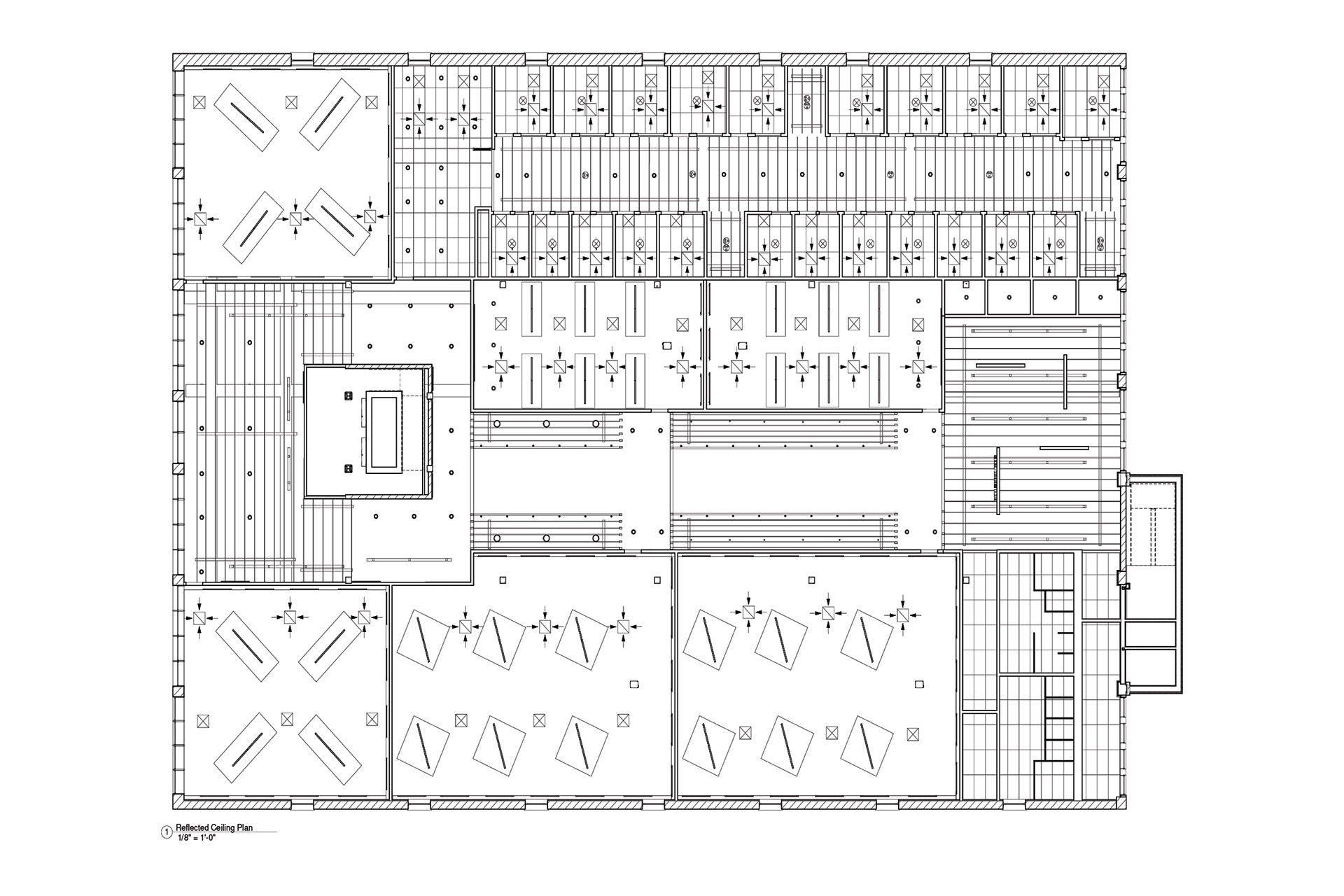

Reflected Ceiling Plan

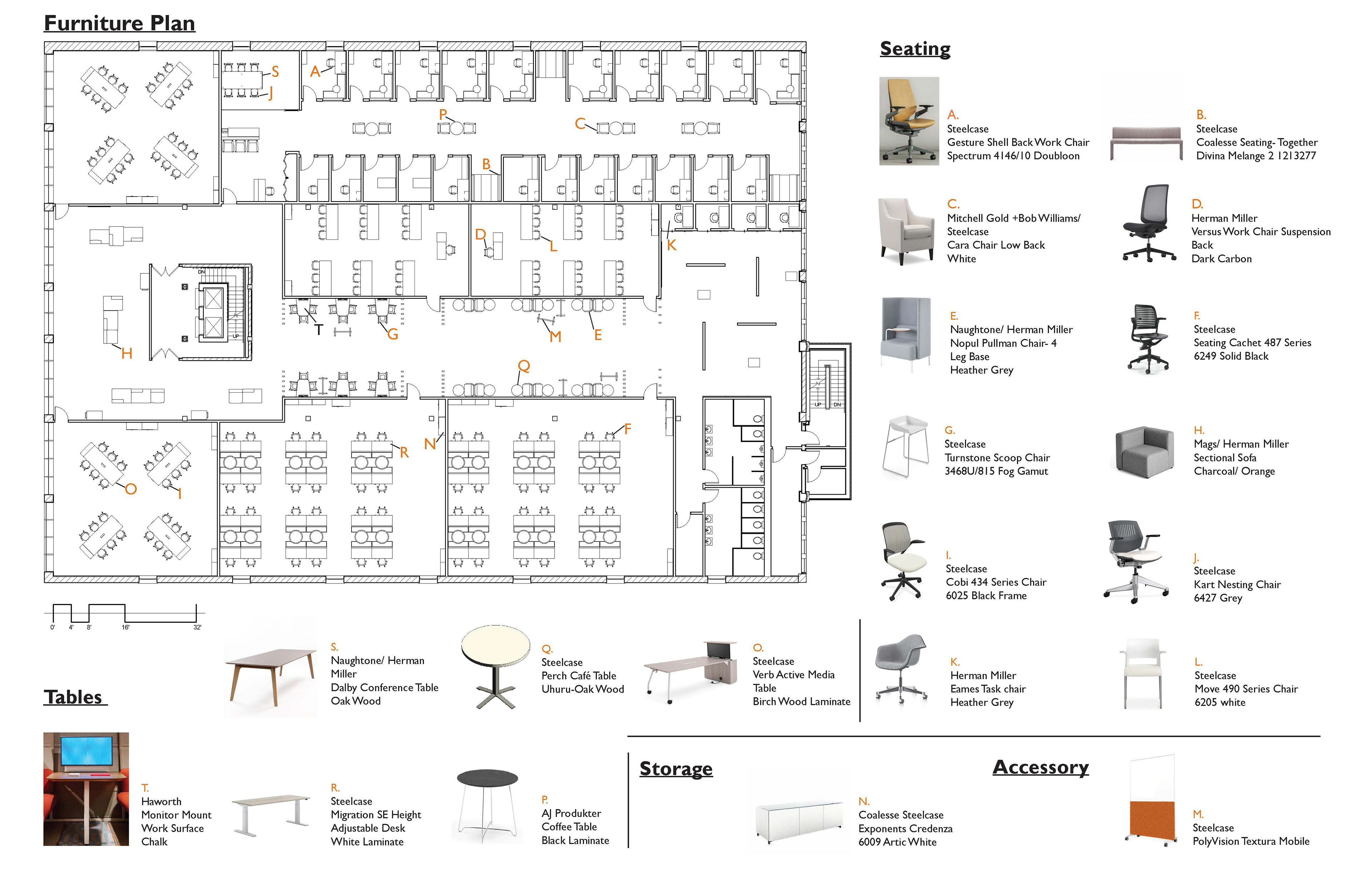

Furniture Plan

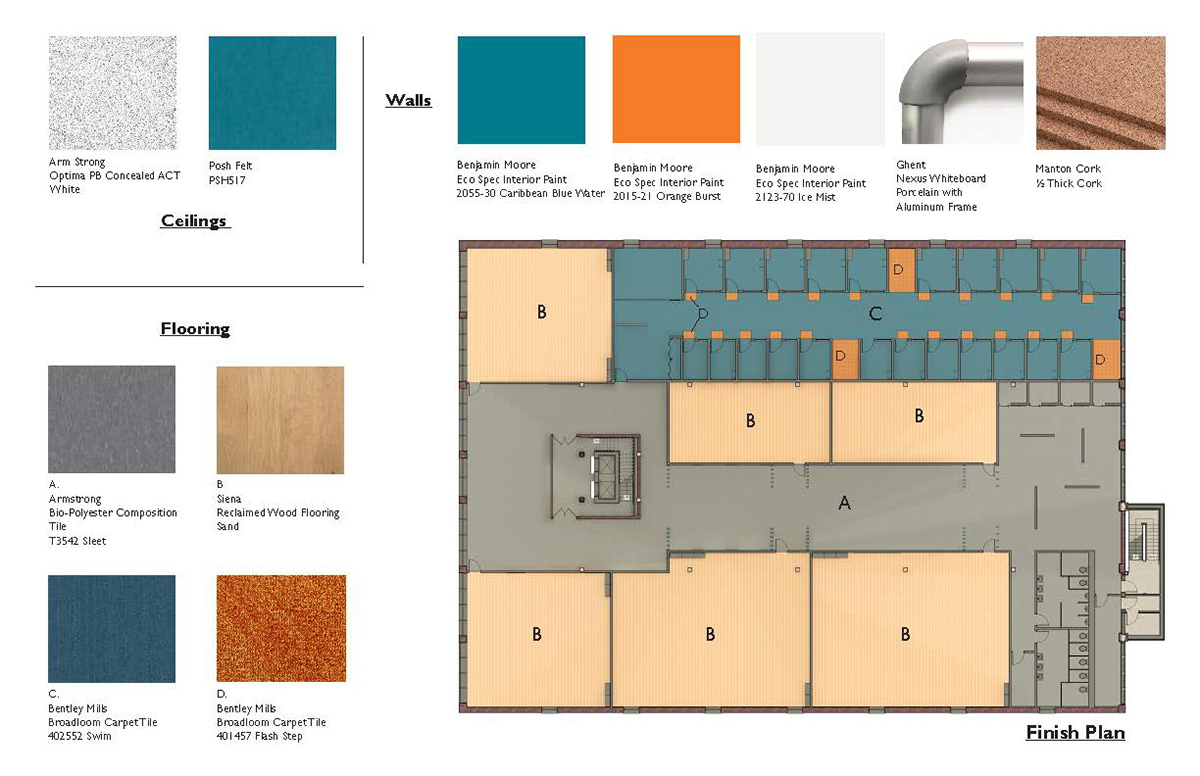

Finish Plan

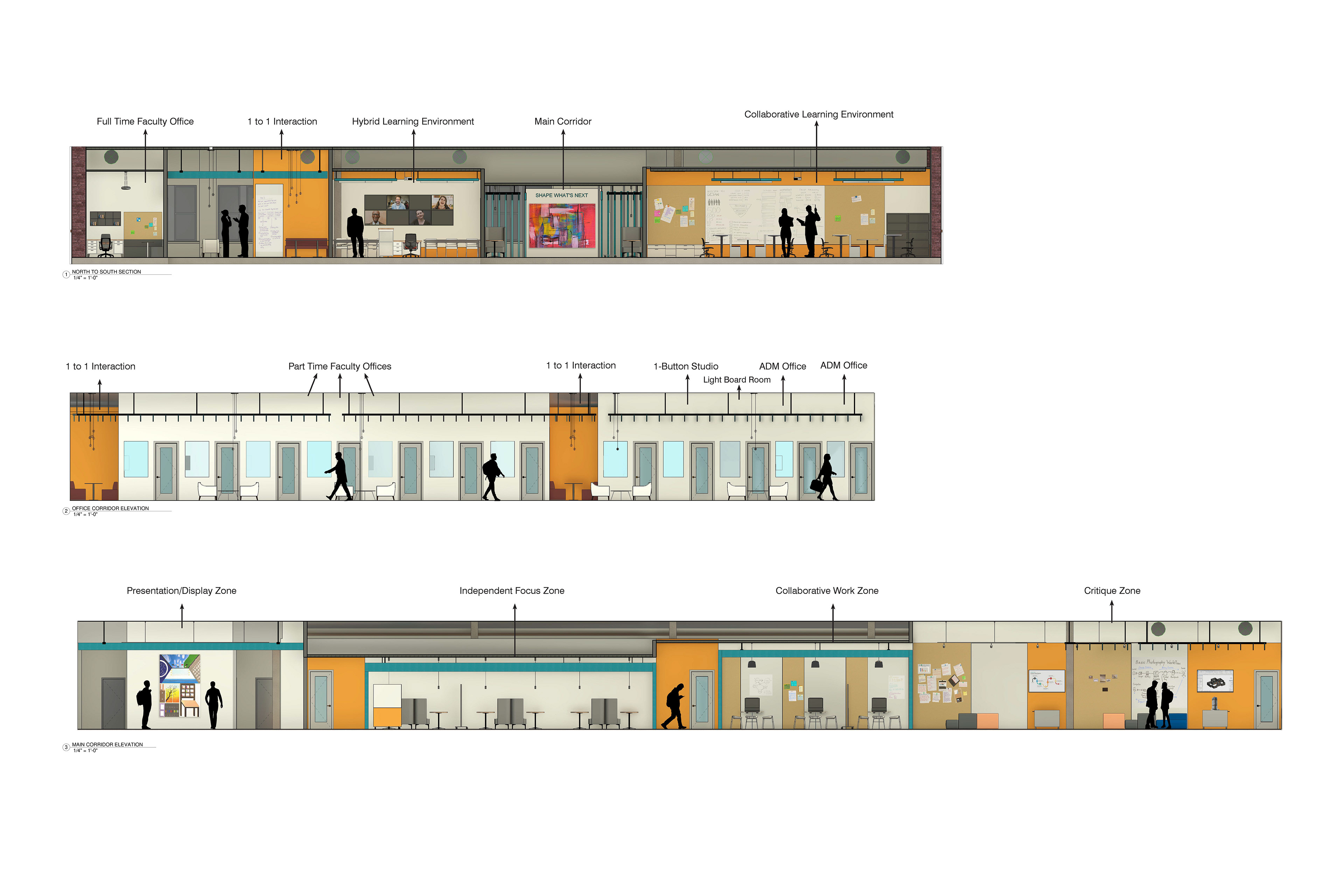

Elevation & Sections

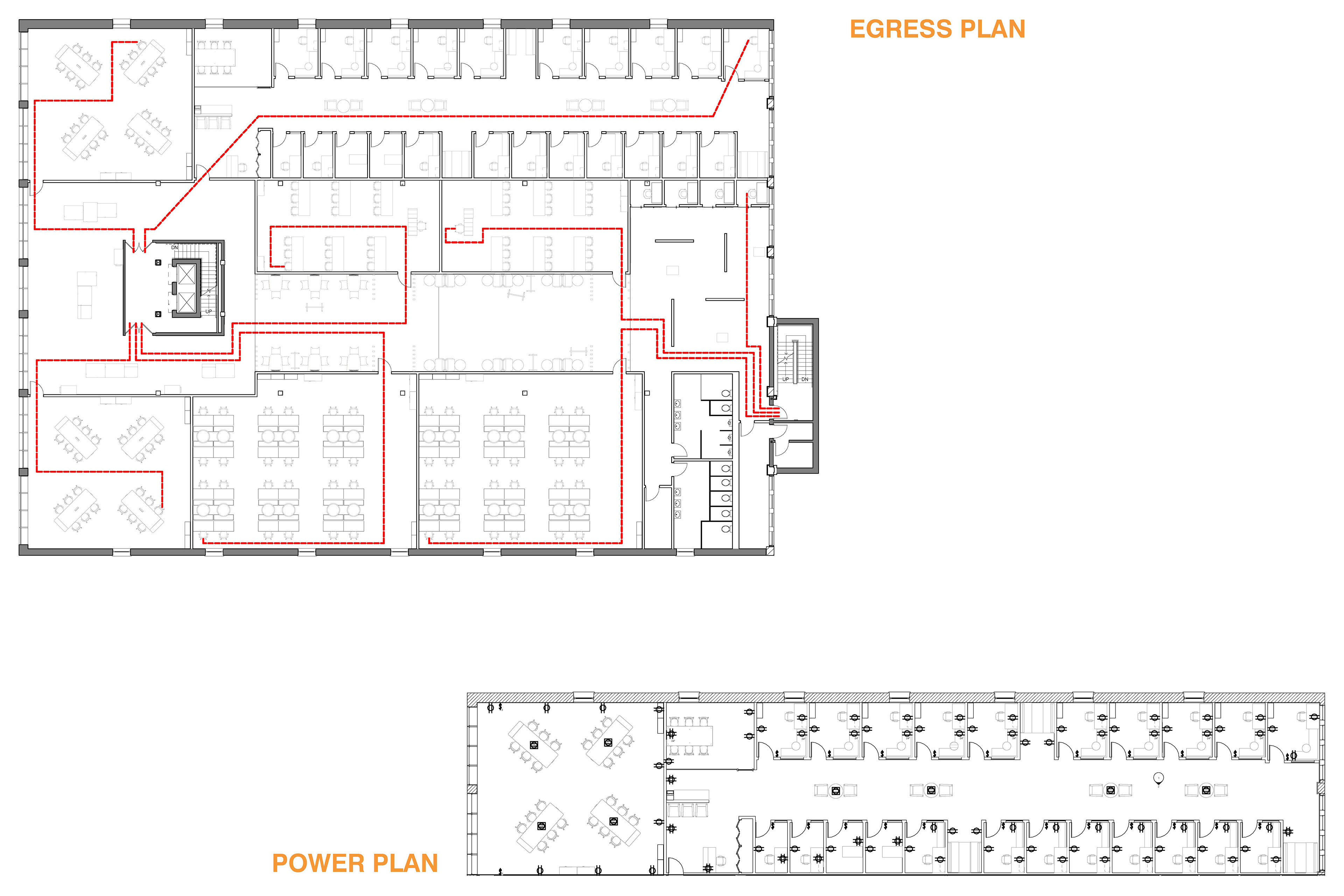

Egress & Power Plan
3D RENDERS
Importing plans completed in Revit into Rhino, I rendered three signature spaces that capture the essence of the 9th floor renovation project with furniture, lighting, and materials.
Collaborative Learning Environment

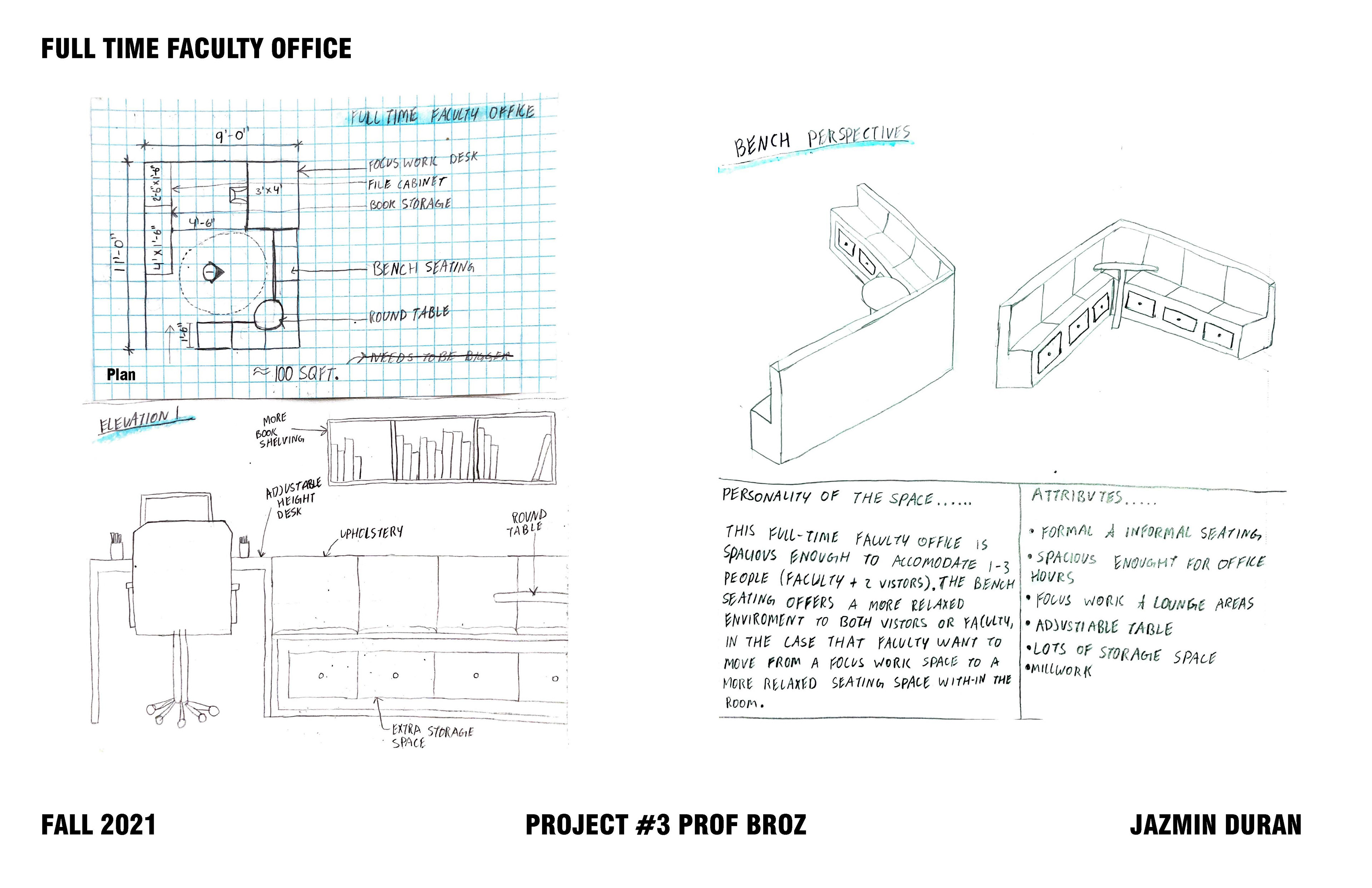

Full-Time Faculty Office
